At VIP Smart Homes, networking isn't an afterthought. It's where every project begins. Your lighting, shading, climate control, security cameras, audio, video, and voice systems all run on your network. If the network isn't right, nothing is right.
We design and install enterprise grade networks for luxury residences: structured cabling, managed PoE switching, Wi-Fi 7 access points, VLAN segmentation, and 24/7 remote monitoring. Whether you send us your architect's plans or an existing equipment list, we'll design around whatever your project needs.
VIP Smart Homes is an Official UniFi Partner
Direct manufacturer access, deal registration, and pre-sales engineering support from Ubiquiti. Every UniFi system we deploy is backed by the same channel programs that support the world's largest enterprise integrators.
UniFi Enterprise: Built for the Connected Home
UniFi is our primary platform for luxury residential and estate-scale projects. One unified dashboard manages every device on your network: gateways, switches, access points, cameras, and door access, with enterprise-grade performance and a level of integration that's hard to match.

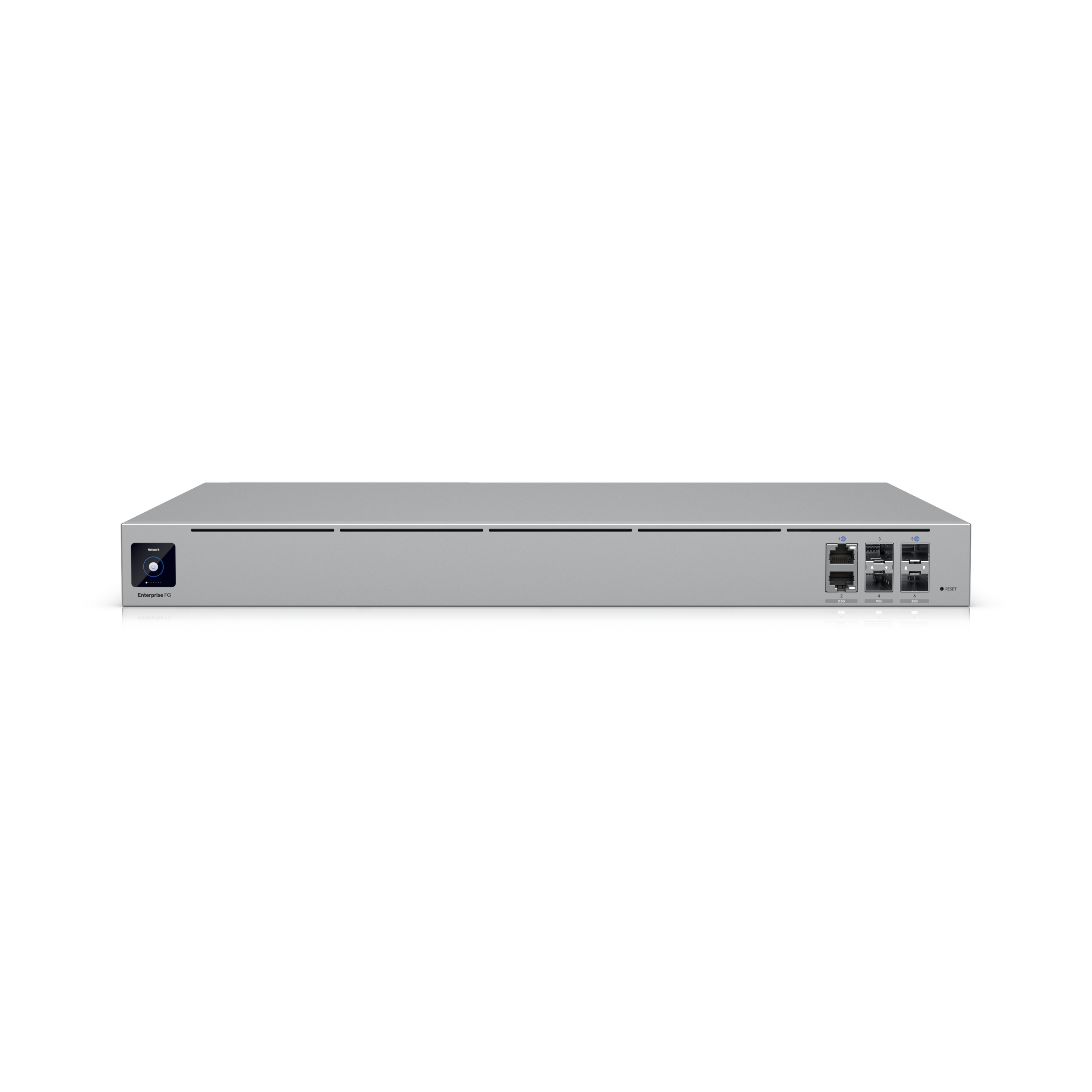

Enterprise Fortress Gateway
Flagship Cloud Gateway25G cloud gateway with 12.5 Gbps IDS/IPS throughput, support for 500+ UniFi devices and 5,000+ clients, and Shadow Mode high availability via VRRP. Ports include (2) 25G SFP28, (2) 10G SFP+, and (2) 2.5 GbE RJ45, all WAN/LAN remappable. License-free NeXT AI Inspection decrypts and inspects SSL/TLS traffic in real time. Dual hot-swappable PSUs and a 1.3" touchscreen. 1U rack mount.

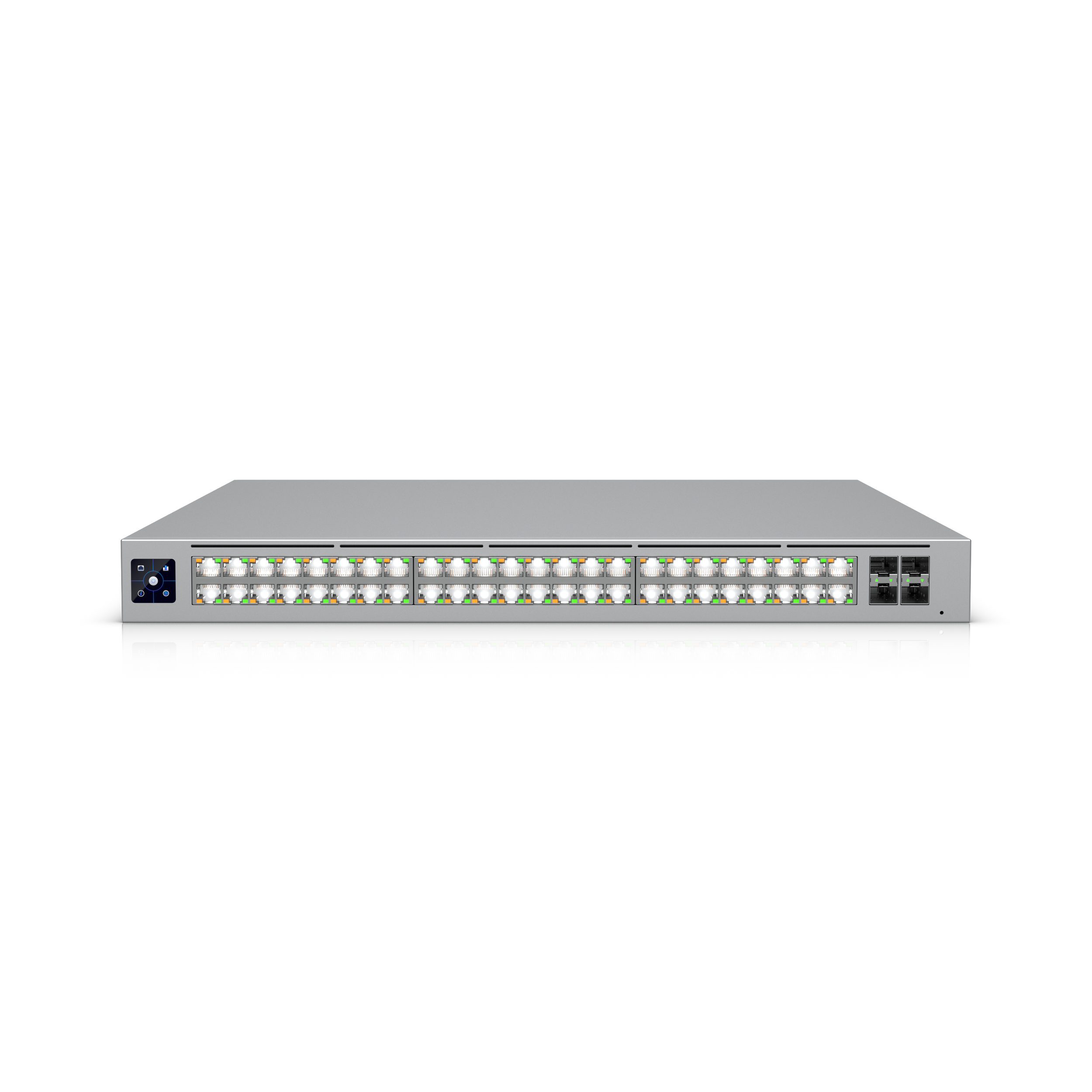

Enterprise Campus 48S PoE
Layer 3 Stacking Switch48-port Layer 3 Etherlighting switch: (32) 2.5 GbE PoE+++ and (16) 10 GbE PoE+++ ports for powering APs, cameras, and high-bandwidth devices from one chassis. (4) 25G SFP28 uplinks and (2) 100G QSFP28 stacking ports. PoE budget up to 2,150W in shared mode. Hot-swappable PSUs and fans for high-availability deployments.

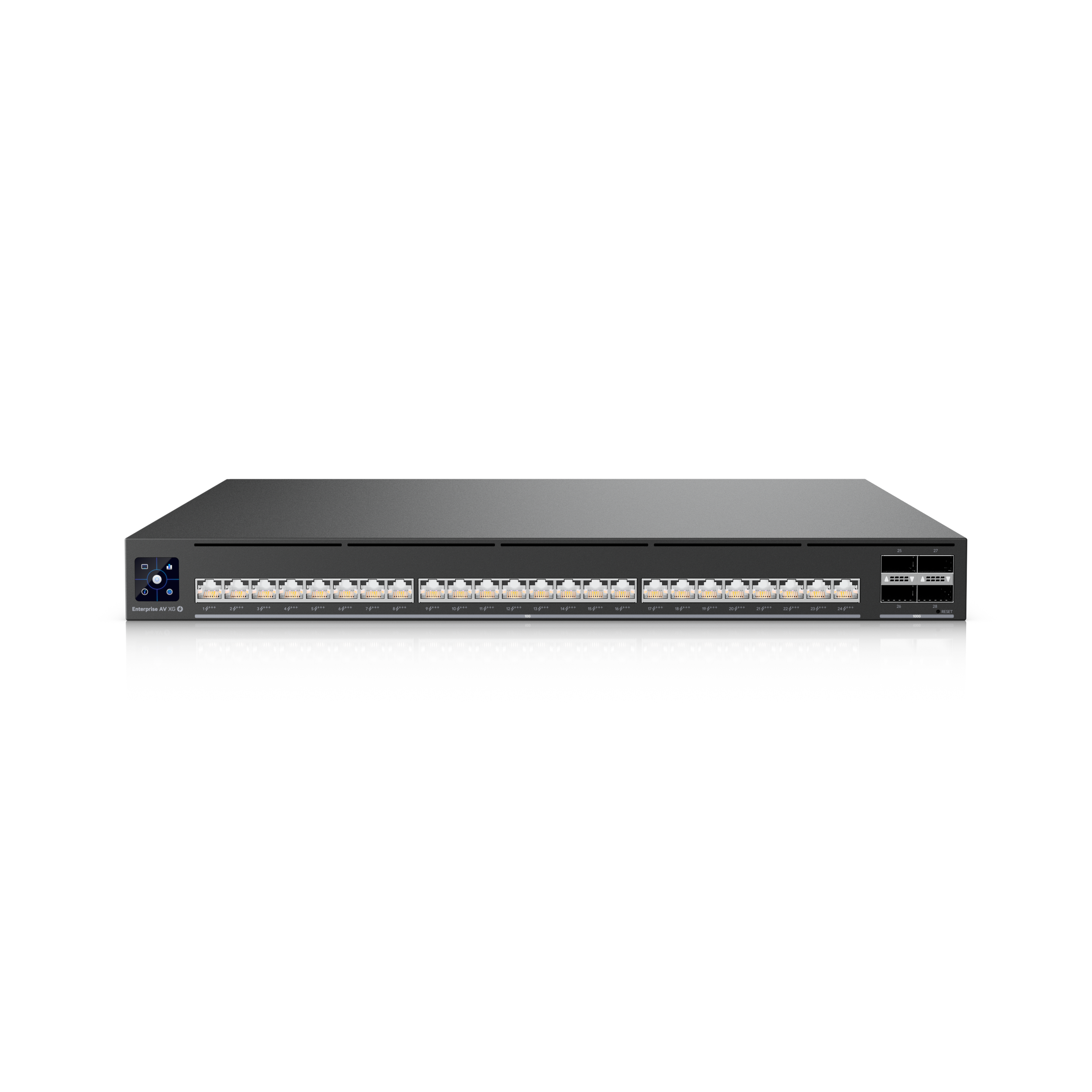

Enterprise AV XG 24 PoE
Dedicated AV-over-IP SwitchPurpose-built for AV-over-IP installations. (24) 10G PoE+++ ports and (4) 100G QSFP28 uplinks, with hardware support for PTP timing, SMPTE ST 2110, SDVoE, and AES67 audio. High-precision OCXO clock with optional GPS grandmaster input (SMA) for deterministic media synchronization across multi-room AV systems.

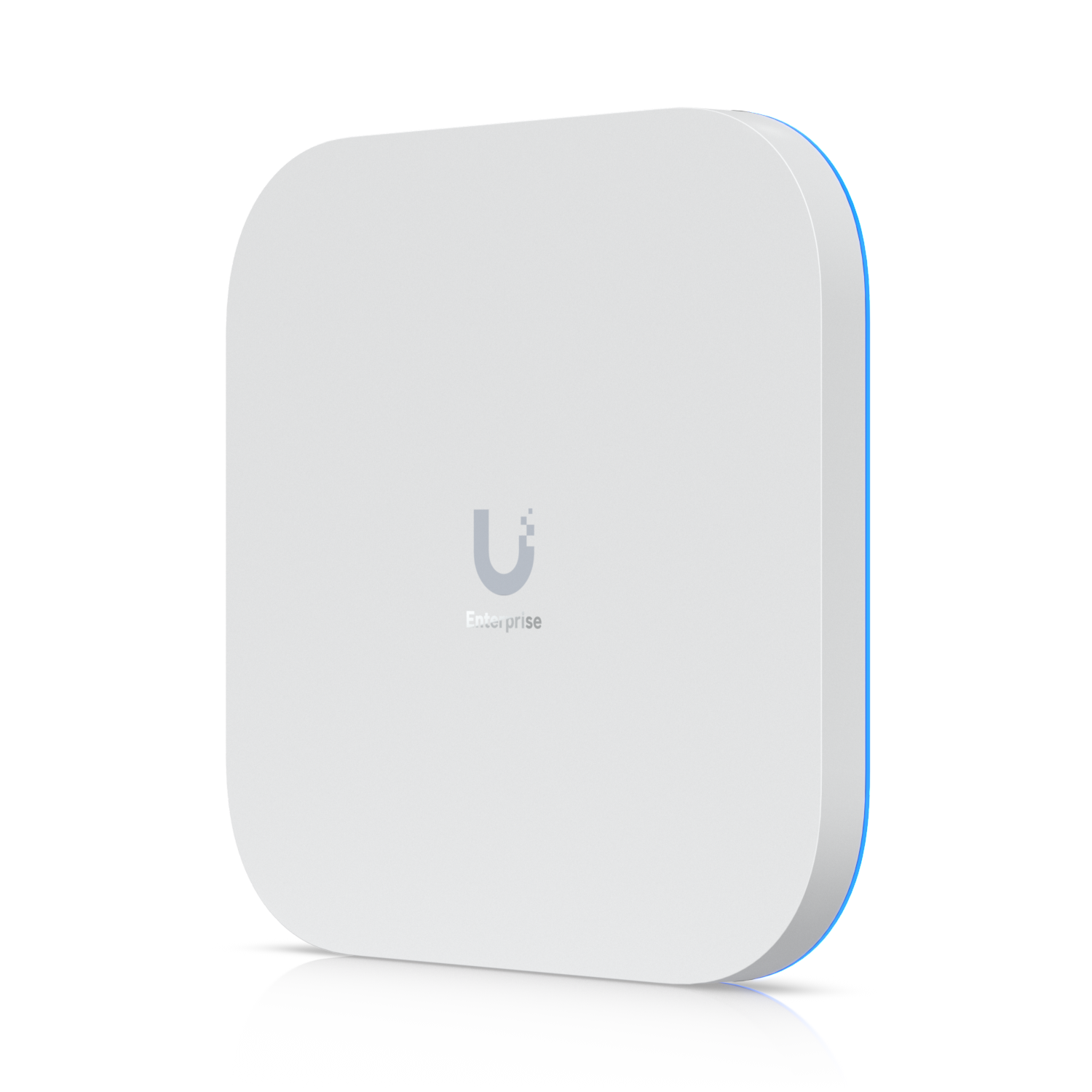

E7
Enterprise Wi-Fi 7 Access PointTop-tier indoor Wi-Fi 7 with 10 spatial streams, up to 11.5 Gbps on 6 GHz, and AFC support for extended-range 6 GHz coverage. Dual uplinks (10 GbE + redundant 1 GbE) for high availability. Coverage of 2,000 sq ft with 1,000+ concurrent clients. PoE++ powered, ceiling/wall/VESA mounting.

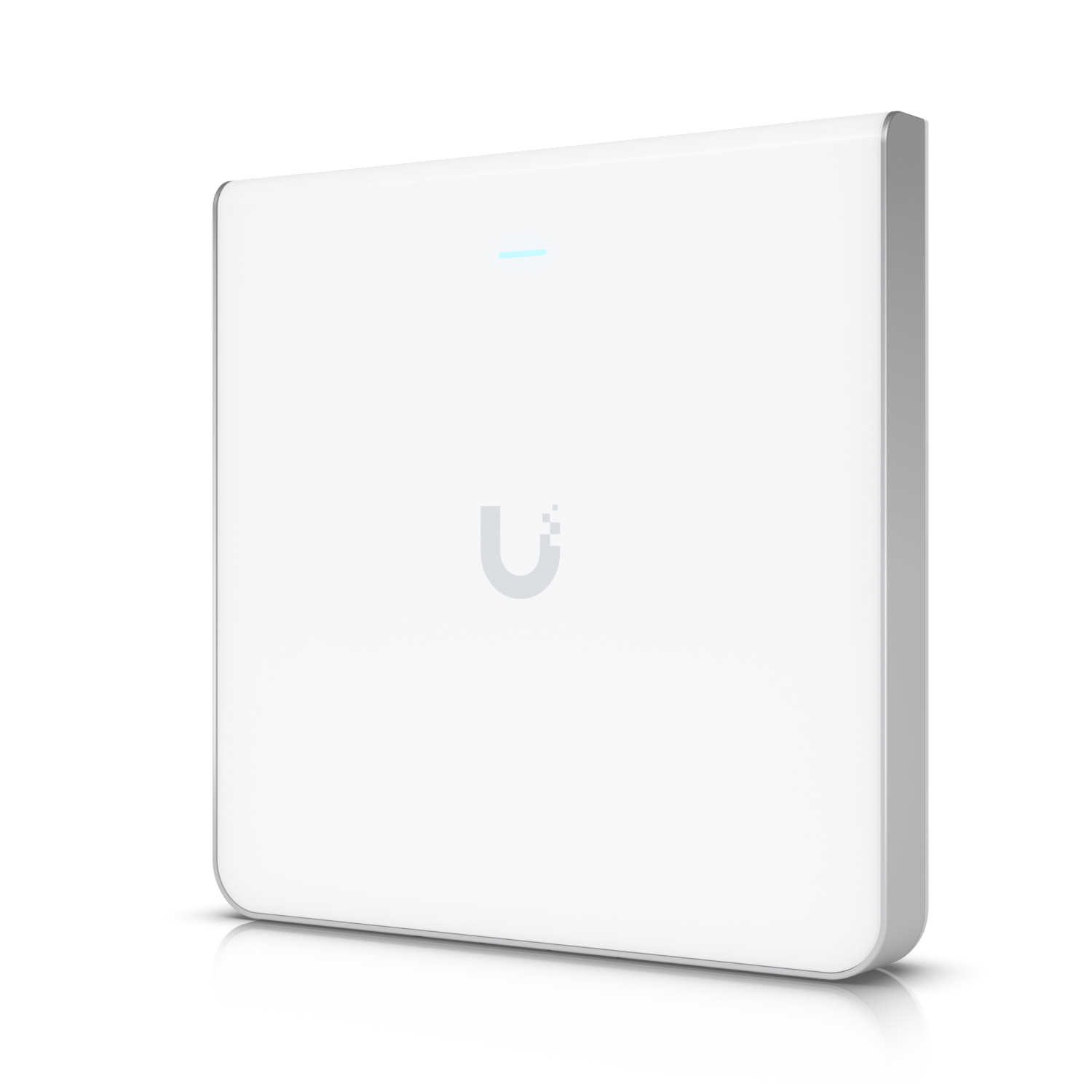

U6 Enterprise In-Wall
In-Wall Wi-Fi 6E Access PointWall-mounted Wi-Fi 6E AP with 10 spatial streams and 6 GHz support, designed to drop into a single-gang wall plate at the desk, bedside, or office. 2.5 GbE uplink plus four built-in GbE ports for hardwiring nearby devices. PoE-out on one downstream port when fed with PoE++. Up to 600+ clients.

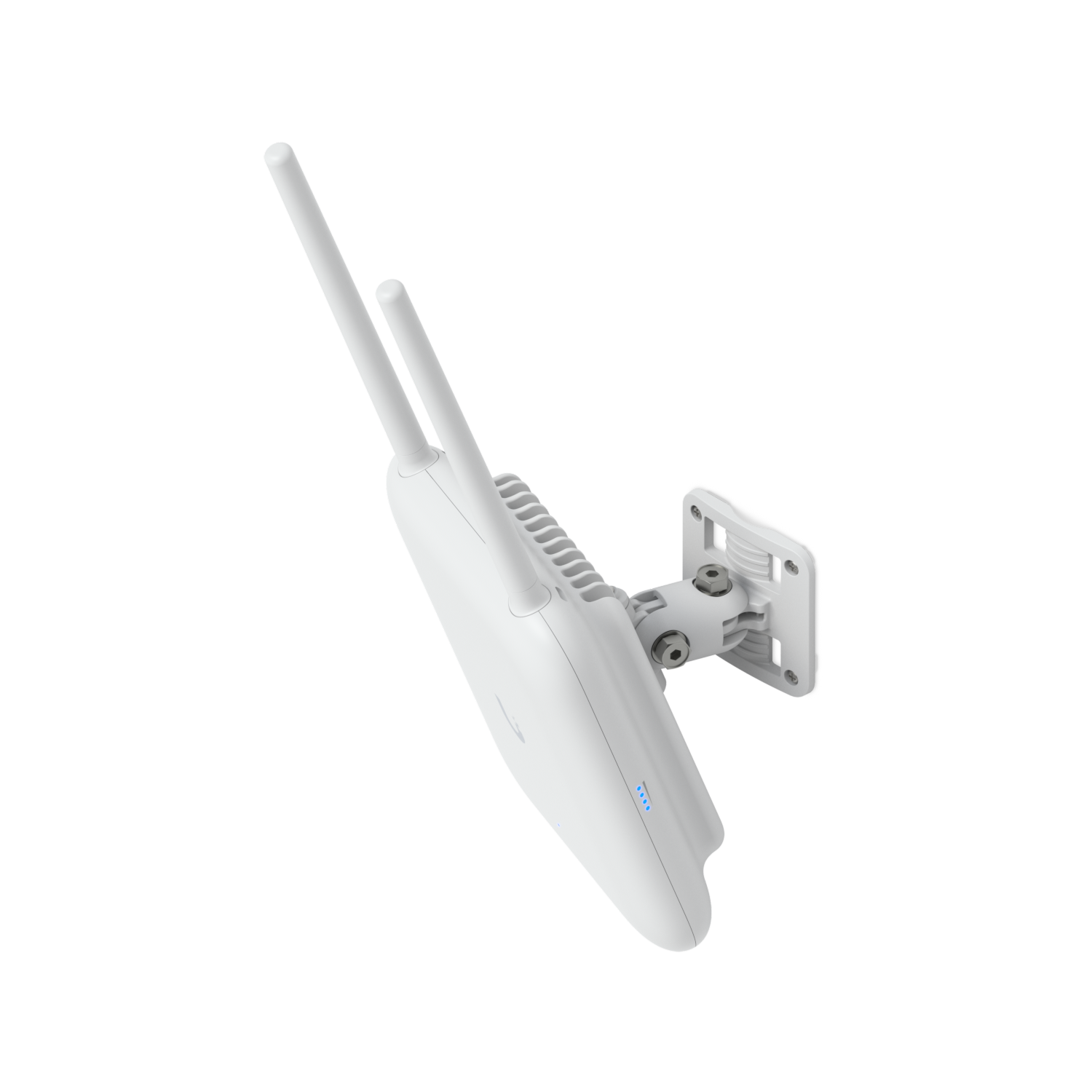

U7 Pro Outdoor
Outdoor Wi-Fi 7 Access PointAll-weather IP67 Wi-Fi 7 AP for pool decks, gardens, courtyards, and detached structures. 6 spatial streams across tri-band 2.4/5/6 GHz, with AFC for extended-range 6 GHz coverage. Integrated directional super antenna plus external omni antennas, articulating wall/pole mount. 2.5 GbE PoE+ uplink, 5,000 sq ft coverage, 300+ clients.

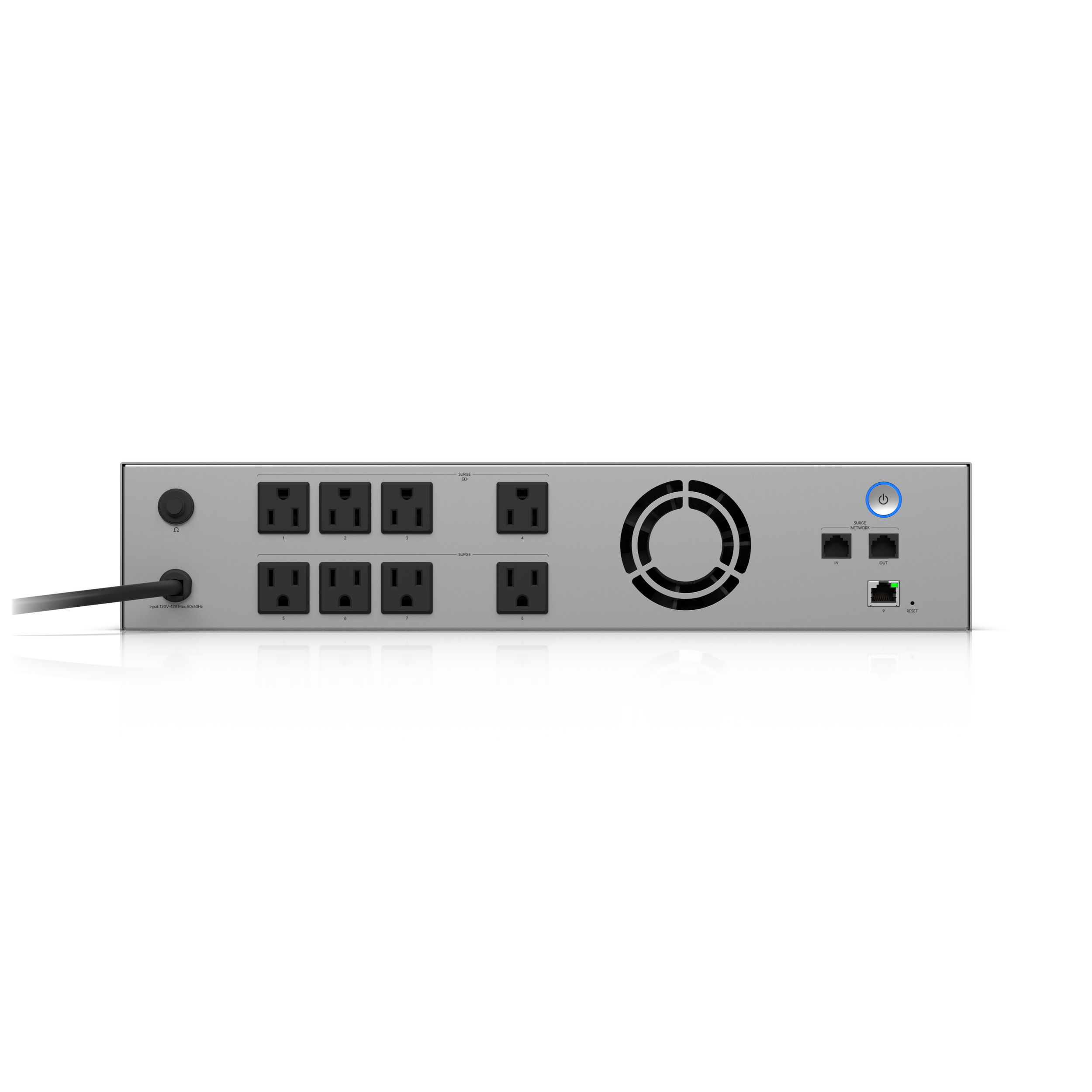

UPS 2U
Managed Rack UPS2U rack-mount uninterruptible power supply with 1.44 kVA / 1,000W line-interactive output and a 216 Wh field-replaceable battery. Four battery-backed outlets plus four surge-only outlets, Ethernet-managed in the UniFi dashboard, with Graceful Shutdown support for UNVR and UNAS. NUT-compatible for third-party servers.

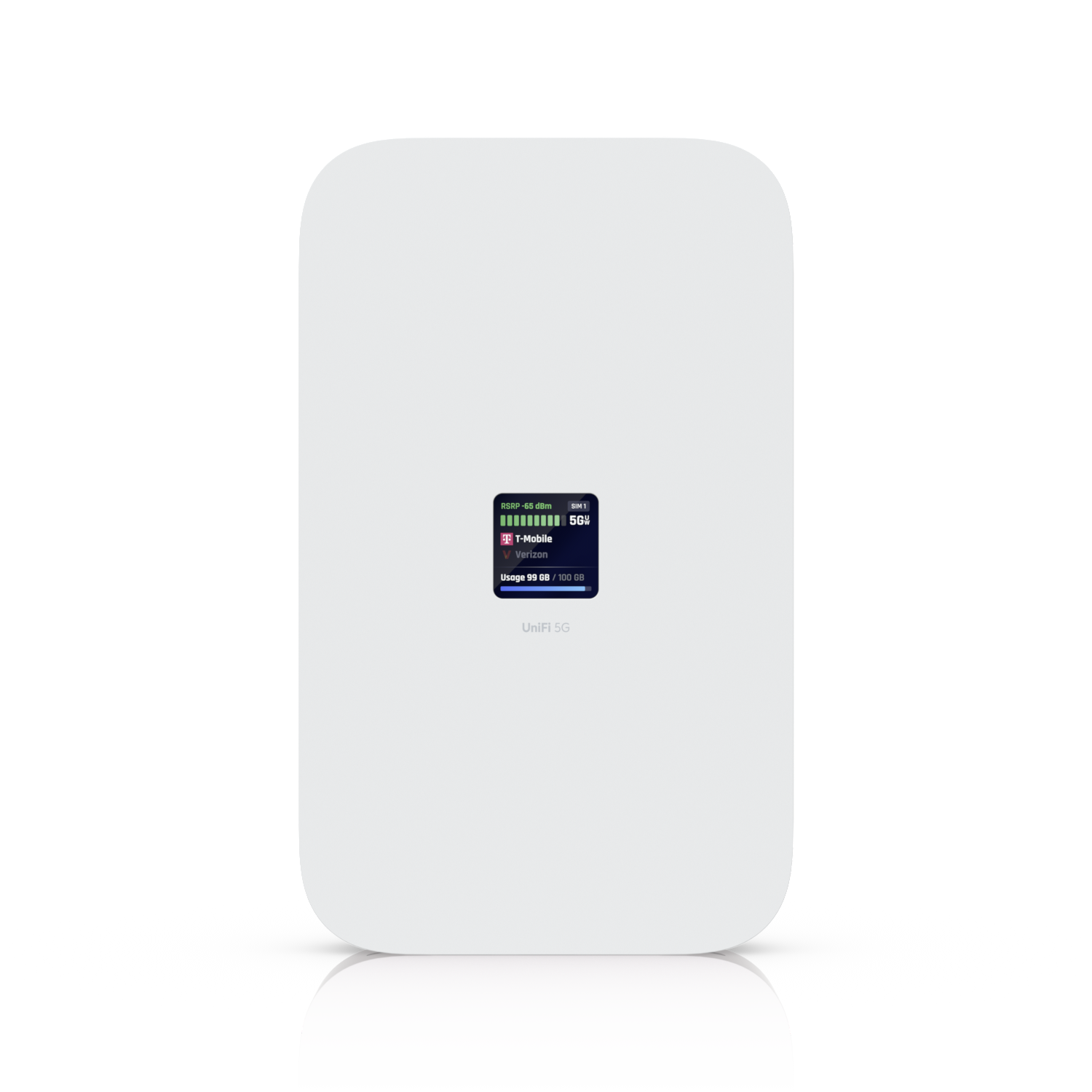

UniFi 5G Max
Cellular WAN / FailoverPoE-powered 5G modem with downlink speeds up to 3.4 Gbps. Dual nano-SIM with eSIM support, automatic UniFi adoption on any PoE port, and a 1.3" touchscreen for signal status. Runs as automatic ISP failover or full primary WAN, certified with major US carriers. 2.5 GbE uplink, 4G LTE fallback.

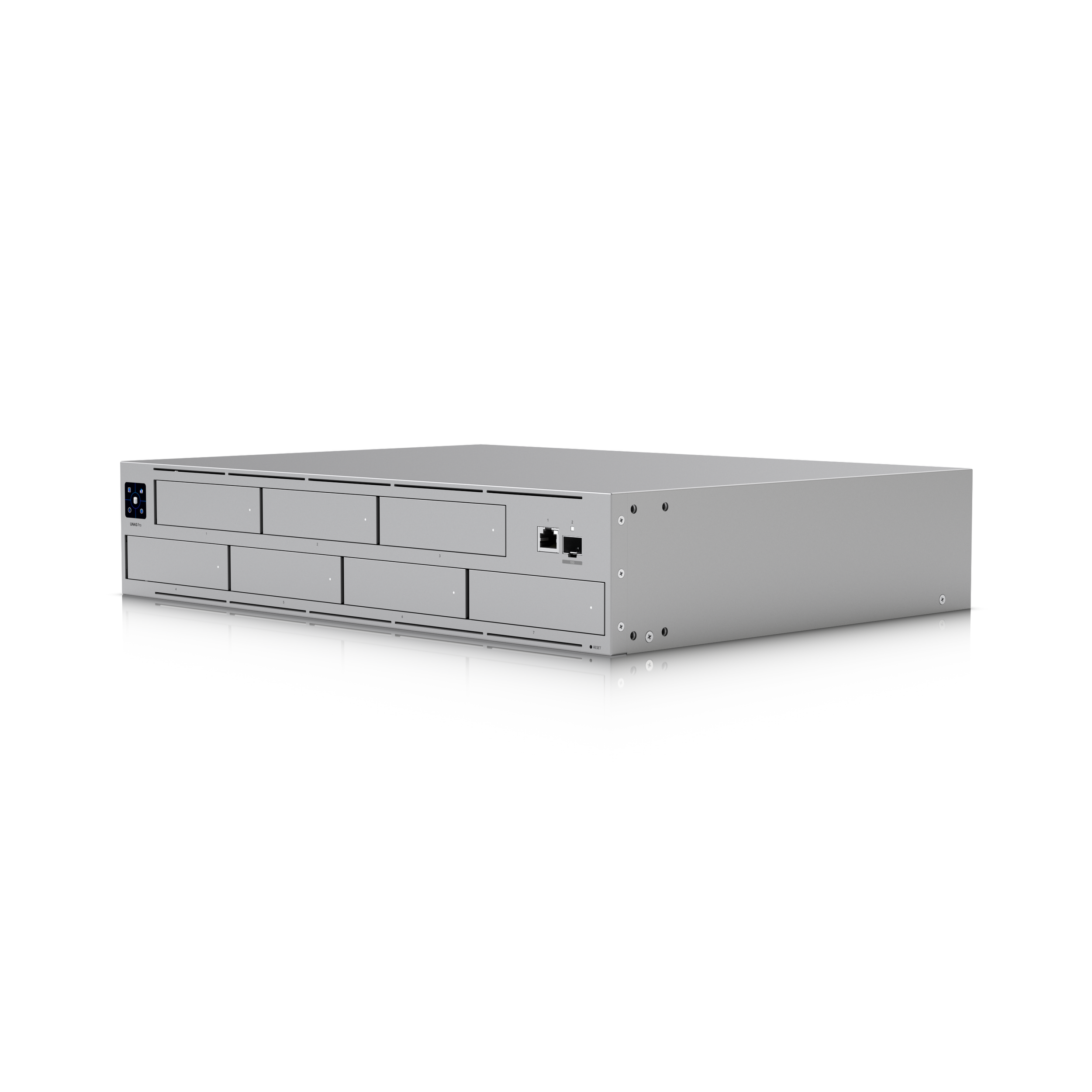

UNAS Pro
Network Attached Storage2U rack-mount NAS with (7) 2.5/3.5" drive bays, 10G SFP+ + 1 GbE networking, and a quad-core ARM CPU with 8 GB RAM. RAID 5/6/10 with flexible storage groups, snapshots, file encryption, SMB/NFS, Time Machine support, and remote backup to S3, Backblaze, Google Drive, OneDrive, and Dropbox. Managed in UniFi Drive.
Six Things Every Network Design Must Address
Access Point Placement
The location and mounting style of your access points fundamentally changes performance. Open-air ceiling mounts behave differently than APs hidden inside millwork or installed in-wall. We design for how your home actually looks, not just how it connects.
Channel Planning & Interference
Channel interference is the silent killer of network performance. Neighboring networks, smart appliances, and even your own APs can compete for the same frequencies. We perform RF assessments and configure non overlapping channels, optimal widths, and calibrated transmit power for your specific environment.
Do You Need Wi-Fi 7?
Wi-Fi 7 delivers multi-gigabit speeds, Multi-Link Operation, and 320 MHz channels. For homes with 8K streaming, dense device counts, or future-proofing requirements, it's the right investment. The UniFi E7 also supports AFC, unlocking extended-range 6 GHz coverage. We'll tell you honestly whether you need it, and why.
Network Security
A password on your router is not security. A professionally secured network uses VLAN segmentation to isolate IoT devices, AV systems, guest traffic, and private computers. The Enterprise Fortress Gateway adds application-aware firewall rules, IDS/IPS, and license-free SSL/TLS inspection at the architecture level.
Install Environment
We walk every property before designing a network. Plaster walls, concrete slabs, steel structure, elevator shafts, wine cellars, and large glass surfaces all affect how wireless signals travel. Knowing the environment is non negotiable.
Proactive Monitoring
A professionally installed network should be proactively managed, not reactively repaired. Through UniFi Site Manager, we monitor health continuously, identifying slow speeds, offline devices, and coverage issues before you notice, and resolving them remotely whenever possible.
We Design Around Your Project
As an Official UniFi Partner, UniFi is our primary platform: it covers the vast majority of luxury residential and estate-scale projects we deploy. But we design around what your project actually needs. If your architect specifies Cisco or your existing home runs on another platform, we work with it.
Send us your plans, your existing equipment list, or just tell us what's not working. We'll design the right solution.
Cisco: Enterprise Core
For estates with enterprise-level complexity: multi-building properties, hybrid residential-commercial builds, or environments requiring infrastructure aligned with corporate IT standards. We deploy Cisco switching and routing at the core when the project calls for it.
UniFi Site Manager: Remote Management
The cloud platform that lets us monitor, configure, and troubleshoot every UniFi device on your network from anywhere. We see problems forming before they become outages, push firmware updates on a schedule, and resolve most issues without scheduling a visit.
We're also authorized dealers for Araknis Networks for projects where it fits the budget and scope. For most luxury installations, UniFi enterprise gear gives you stronger hardware, better cloud management, and a unified platform that scales from a guest house to a multi-building estate.
Common Questions About Home Networking
How is a professional network different from a consumer router?
Consumer routers try to do everything (routing, switching, Wi-Fi, and firewall) in one box. A professional network separates those functions across dedicated, enterprise-grade hardware: a gateway like the UniFi Enterprise Fortress Gateway for routing and security, managed switches like the Enterprise Campus 48S PoE for wired distribution, and strategically placed access points for wireless coverage. The result is dramatically better performance, reliability, and security.
How many access points does my home need?
It depends on square footage, construction materials, and layout. A typical 3,000 to 5,000 sq ft home usually needs 3 to 5 access points. Larger estates with concrete, plaster, or multi-building layouts may need 8 to 15+. The UniFi E7 covers up to roughly 2,000 sq ft with strong signal, and the U6 Enterprise In-Wall handles tighter spaces. We survey your property and design for complete coverage with no dead zones.
Do I need Wi-Fi 7?
For most homes today, Wi-Fi 6E delivers excellent performance. Wi-Fi 7 adds Multi-Link Operation and 320 MHz channels: meaningful for homes with 8K streaming, heavy video conferencing, 100+ device counts, or clients who want to future-proof. The UniFi E7 is also the first AP with built-in AFC support, which unlocks higher-power 6 GHz coverage. We'll assess your actual needs and recommend accordingly.
What is VLAN segmentation and why does it matter?
VLANs (Virtual Local Area Networks) separate your network into isolated segments: one for your personal devices, one for IoT/smart home devices, one for guests, one for cameras. This means a compromised smart thermostat can't access your personal files, and a guest's infected laptop can't see your cameras. It's fundamental to network security and built into every UniFi system we deploy.
What does the AV switch do that a regular switch doesn't?
The UniFi Enterprise AV XG 24 PoE is built specifically for AV-over-IP. It supports SMPTE ST 2110, SDVoE, and AES67 audio with hardware-level PTP timing and a high-precision OCXO clock, which keeps video and audio streams synchronized across multiple rooms. For homes with whole-house video distribution or pro-grade audio over the network, it's the right switch for the job.
Can you fix my existing network?
In many cases, yes. We'll assess your current equipment, cabling, and configuration. Sometimes the hardware is fine but the design is wrong: APs in the wrong locations, channels conflicting, no VLAN segmentation. Other times, the hardware needs to be replaced. Either way, we'll tell you honestly what the right path is.
Do you run the cabling?
Yes. We install structured cabling (Cat6a or fiber) as part of every new construction and most renovation projects. Clean, labeled, terminated runs from your equipment rack to every access point, camera, and wired device. We also work with your electrician or low voltage contractor if they're handling the cable pulls.
What happens if my internet goes down?
We can install cellular failover for clients who can't afford downtime. The Enterprise Fortress Gateway also supports dual-WAN load balancing and failover natively, so a secondary ISP connection can take over automatically if the primary drops. Cameras keep recording, alarms keep communicating, and automation keeps running.
Do you offer ongoing network support?
Yes. Our monthly support plans include 24/7 remote monitoring through UniFi Site Manager, firmware updates, performance optimization, and priority on-site support. We catch problems before you notice them and resolve most issues remotely.
